TEM Modul Switches - Without Buttons

TEM
On - Off & Everything in between.

TEM Switch Mechanisims


         SM10                                   SWITCH 1 WAY 16AX 250V~ 1M
                                                      - switch without button
             - 16AX 250V~, type SM10
             - in accordance with ANZS & EN 60669-1
             - screw contacts 1.5-2.5mm2

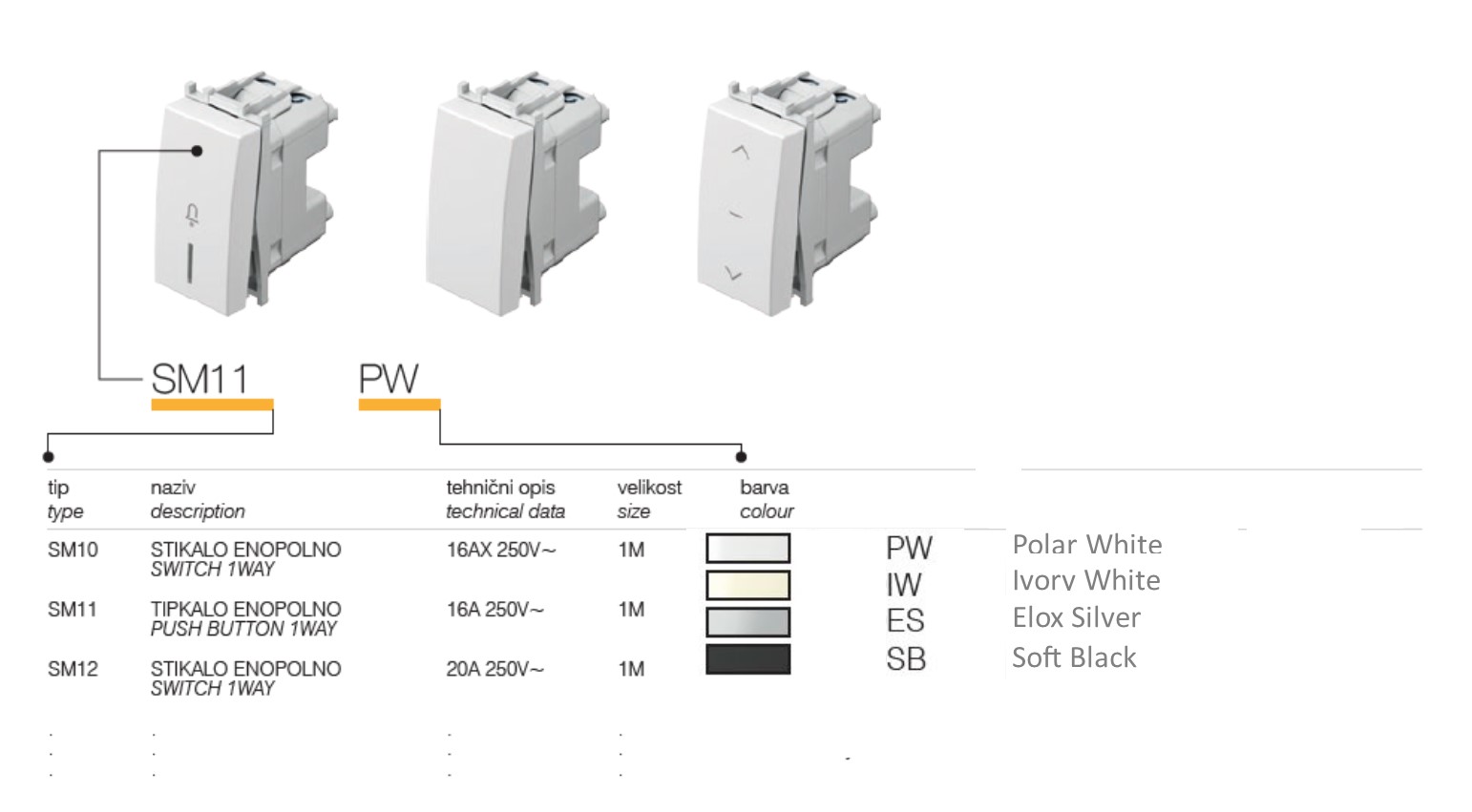

SM11

             PUSH BUTTON 1 WAY 16A 250V~ 1M
            - Push button without button
            - 16A 250V~, type SM11
            - in accordance with ANZS &EN 60669-1
             - screw contacts 1.5-2.5mm2




SM12
SWITCH 1 WAY 20A 250V~ 1M
                                                       - switch without button
                                                       - 20A 250V~, type SM12

       - in accordance with ANZS & EN 60669-1
             - screw contacts 1.5-2.5mm2







SM20
             SWITCH 2 POLE 16AX 250V~ 1M
            - switch without button
            - 16AX 250V~, type SM20
            - in accordance with ANZS &EN 60669-1
            - screw contacts 1.5-2.5mm2
            - only in combination with button TM15




   SM40
           S
WITCH SHUTTERS 1-0-2 16AX 250V~ 1M
           - switch without button
           - 16AX 250V~, type SM40
           - in accordance with ANZS & EN 60669-1
           - screw contacts 1.5-2.5mm2






SM41

              PUSH BUTTON SHUTTERS 1-0-2 16A 250V~ 1M
             - push button without button
             - 16A 250V~, type SM41
             - in accordance with ANZS & EN 60669-1
              - screw contacts 1.5-2.5mm2




SM60

             SWITCH 2 WAY 16AX 250V~ 1M
             - switch without button
             - 16AX 250V~, type SM60
             - in accordance with ANZS &EN 60669-1
             - screw contacts 1.5-2.5mm2




SM61

                                                                                       PUSH BUTTON 2WAY 16A 250V~ 1M
                                                                                           - push button without button
                      - 16A 250V~, type SM61
                      - in accordance with ANZS & EN 60669-1
                      - screw contacts 1.5-2.5mm2









 SM70
          SWITCH INTERMEDIATE 16AX 250V~ 1M
          - switch without button
          - 16AX 250V~, type SM70
          - in accordance with ANZS & EN 60669-1
          - screw contacts 1.5-2.5mm2


TEM Modul Switch mechanisims use replacable buttons and are easy to mount.​

Use the TEM Modul Manager to design your Project







Refine Search

Product Compare (0)


TEM SM10 1 Way Switch

TEM SM10 1 Way Switch

  TEM SM10 1 Way Switch is designed to work in conjunction with lighting circuits and is rated at 1..

TEM SM11 Push Button Switch

TEM SM11 Push Button Switch

  TEM SM11 Push Button Switch Mechanism (non latching)   is designed to work in conjunction with al..

TEM SM12 1 Way 20A Switch

TEM SM12 1 Way 20A Switch

  TEM SM12 1 Way Switch is designed to work in conjunction with circuits that require a higher load..

TEM SM20 1 Way 2 Pole Switch

TEM SM20 1 Way 2 Pole Switch

  TEM SM20 2 Pole 1 Way Switch is designed to work in circuits that require 2 Pole Switching and is..

TEM SM40 Shutter Switch

TEM SM40 Shutter Switch

  This switch mechanisim is designed for the control of Shutters. Any device that requires 2 Pos..

TEM SM41 Dimmer-Blind-Awning Switch

TEM SM41 Dimmer-Blind-Awning Switch

  This switch mechanisim is designed for the control of Window coverings, Dimmers or Awnings. An..

TEM SM60 2 Way Switch

TEM SM60 2 Way Switch

  TEM SM60 2 Way Switch is designed to work in circuits requiring 2 way switching. Switches are av..

TEM SM61 2 Way Push Button Switch

TEM SM61 2 Way Push Button Switch

  TEM SM61 2 Way Push Button Switch ( without the button). This switch latches in either the 1 p..

TEM SM70 Intermediate Switch

TEM SM70 Intermediate Switch

  TEM SM 70 Intermediate Switch is designed to work in conjunction with 2 way switches as an interm..

TEM SOCKET BRITISH VM52PW

TEM SOCKET BRITISH VM52PW

 SOCKET BRITISH BS 1363-2+KS 2P+E 13A 250V~ 2M - 2P+E British BS 1363-2 - 13A 250V~, type ..

TEM SOCKET SCHUKO+KS 2P+E 16A 250V~ 2M

TEM SOCKET SCHUKO+KS 2P+E 16A 250V~ 2M

  TEM SOCKET SCHUKO+KS 2P+E 16A 250V~ 2M  SOCKET SCHUKO+KS 2P+E 16A 250V~ 2M - 2P+E schuko..

TEM-EM18-Dimmer-Module

TEM-EM18-Dimmer-Module

DIMMER INBOX Kit - LED 250W Component Neutral not required.   - Component inbox, controlled b..

TEM-EM19-Constant Voltage Dimmer-Module

TEM-EM19-Constant Voltage Dimmer-Module

DIMMER INBOX Kit - Constant Voltage 9-48VDC    DIMMER INBOX DC LED 96W - inbox, controlled ..

Showing 1 to 13 of 13 (1 Pages)
