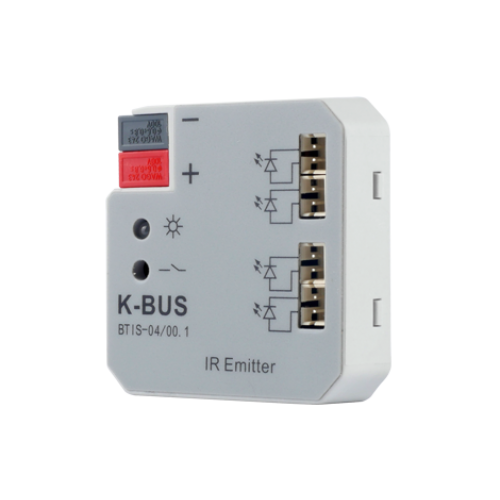

• KNX-IR-4-Fold-Transmitter
  • 4 channels, up to 64 different IR codes can be learned/stored per channel

  • Support multi-sending and delayed-sending

  • Each channel can link up to 16 group addresses

  • The IR codes can be assigned to 1bit or 1byte objects

  • Each main function can include 5 slave functions

  • The transmitting distance is max. 2m



  • Bus voltage
    21-30V DC, Via KNX/EIB
  • Bus current
    <12mA
  • Bus consumption
    <360mW
  • Transmitting distance
    <2m
  • IR wavelength
    940nm
  • IR emission receiving angle
    <45°
  • IR detector extension cable
    <10m
There are no reviews for this product.

Write a review

Please login or register to review

KNX-IR-4-Fold-Transmitter

  • Brand: KNX
  • Product Code: BTIS-04/00.1
  • Availability: In Stock
